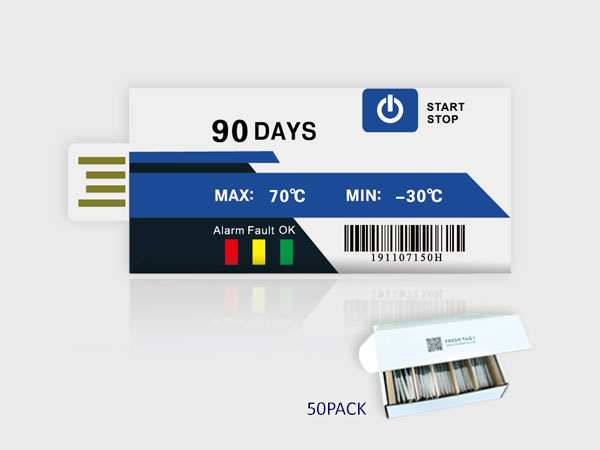

Thermis Log 1 Disposable Temperature Recorder
Temperature Range: -30℃～+70℃
Temperature Accuracy: ±0.5℃ at full range (-30℃ to +70℃)
Memory Capacity: PDF: Max. 20,000 readings
The Thermis Log 1 Disposable Temperature Recorder is a high-performance disposable temperature recorder that provides accurate and reliable temperature monitoring and recording capabilities. This product adopts advanced technology and design and has a high-precision temperature sensor to provide accurate temperature measurement results. It also has long-term data recording capabilities and can record and store temperature data at multiple time points.
Introduction
Thermis Log 1 Disposable Temperature Recorder is designed specifically for the pharmaceutical industry. With an accuracy of ±0.5°C over the full temperature range (-30°C to +70°C), the logger is ideal for recording temperature-sensitive cargo, especially vaccine cargo. The temperature logger is low-cost, easy to operate, takes up little space, and can generate unmodifiable PDF data reports by plugging the logger into a computer.
Freshliance has launched different models of Thermis Log 1 Disposable Temperature Recorder based on the number of days of use, providing multiple models with different functions (available for 7, 15, 30, 60, or 90 days). Choosing the appropriate model for specific needs can save more. Much cost. Thermis Log 1 can help track the temperature changes of goods and ensure the quality and integrity of goods.
Features
1. Configurable parameters: Its parameters can be preset on our free configuration software according to your needs, and the setting operation is simple.
2. Long battery life and large memory capacity: This USB temperature/humidity data logger can work for up to 90 days. Its storage capacity is up to 20000 readings.
3. Easy to place and operate: The small and lightweight disposable USB temperature/humidity data logger can be placed anywhere. It requires no software or drivers to set up or download data.
4. Abnormal state alarm: Its green and red LED lights can indicate its different states. Once the temperature or humidity exceeds the set alarm range, the red LED light will flash.

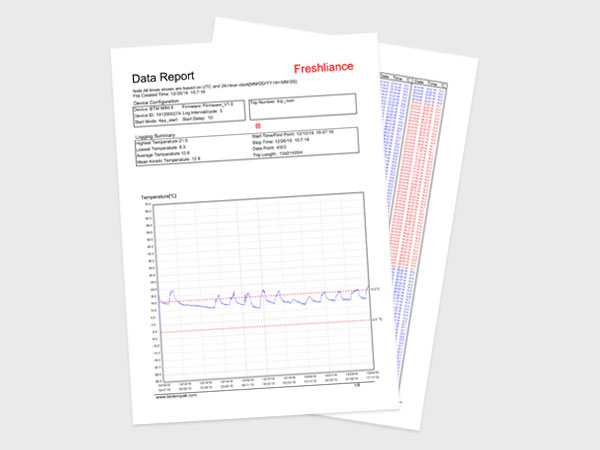

5. Automatic generation of encrypted reports: After the trip, connect the USB temperature and humidity recorder to the computer, and an irreversible report with charts and tables will be automatically generated, without cables or readers.
6. IP65 Protection Rating: The protective plastic case helps keep the USB temperature/humidity sensor dry and eliminates worries when transporting the product in cold packs, ice or wet environments.
Specification
|
Model |
Thermis Log |
Type |
Disposable |
|
Display |
LED indicator |
Run Days |
Max. 90days (for PDF version)
|
|
Temperature Range |
-30℃~+70℃ |
Temperature Accuracy |
±0.5℃ at full range (-30℃ to +70℃) |
|
Resolution |
0.1℃ |
Memory Capacity |
20000 readings |
|
Logging Interval |
1 minute to 60 minutes |
Start Delay |
0 second-2 hours |
|
Report Output |
Automatic, no software needed |
Report Format |
PDF / CSV / PDF&CSV |
|
Alarm Range |
Adjustable (According to customer needs) |
Battery |
3.0V CR2032
|
|
Connection |
USB, NFC (optional) |
Compatible OS |
Windows, Mac
|
|
Weight |
11g |
Dimension |
67mm *27mm *5mm
|
|
Protection Grade |
IP67 |
Certification |
CE, RoHS, EN12830
|
Applications
Thermis Log 1 Disposable Temperature Recorder is very suitable for pharmaceutical, food, life science, vaccine and protein products, and can be directly used in freezers, medical cabinets, fresh cabinets, freezers, laboratories and other places.
Food industry: During food production, transportation and storage, temperature is a very critical parameter. Thermis Log 1 can be used to monitor the temperature of food in cold chain transportation to ensure the quality and safety of food. It can help food companies follow food safety standards, monitor and record food temperature changes for traceability and certification when needed.
Pharmaceutical industry: The quality and stability of pharmaceuticals are closely related to the temperature of the environment. Thermis Log 1 can be used to monitor the temperature of medicines during transportation and storage to ensure the effectiveness and safety of medicines. It can help pharmaceutical companies follow the Good Manufacturing Practices, monitor and record the temperature history of medicines to ensure the quality control of medicines throughout the supply chain.
Logistics and warehousing management: In the process of logistics and warehousing, especially for goods that need to be kept at a certain temperature, Thermis Log 1 can be used to monitor and record the temperature changes of the environment where the goods are located. Whether in cold chain logistics, refrigerated storage or temperature-controlled logistics, Thermis Log 1 can provide accurate temperature data to help logistics companies and warehouse managers ensure the quality and integrity of goods.
Laboratory Research: In scientific research and laboratory environments, maintaining constant temperature conditions is critical to the accuracy of experimental results. Thermis Log 1 can be used to monitor temperature changes in the laboratory and provide reliable data support. It can be applied to various laboratory scenarios, including biomedical research, materials science and chemical laboratories, etc., to ensure the repeatability and accuracy of experiments.
Healthcare industry: In the medical field, some drugs, vaccines and biological products have strict temperature requirements. The Thermis Log 1 can be used to monitor the temperature of medical supplies and equipment to ensure their quality and effectiveness. It can be applied to scenarios such as hospitals, clinics, and vaccine transportation to help medical institutions and supply chain managers ensure the quality and safety of medical products.
